ZDH、ZHS、VHS型吊式阻尼弹簧隔振器
ZDH，ZHS，VHS suspending damp spring vibration absorber |
|
在建筑等行业中，设备或管道需要吊装的很多，因设备产生的振动影响环境或者外来的振动影响设备的情况也不少。ZDH系列、zHs系列、VHs系列吊式阻尼弹簧隔振器是根据用户需要和工程设备吊装的实际需要而开发的产品。该产品具有阻尼比大、自振频率低、安装方便、对固体传声有明显的降噪效果，对于各种大小设备及管道的吊装普遍适用。 |
In architecture and other industry，there are a mass of equipment and pipelines needing to be suspended． Vibration caused by equip-ments will affect environment，external vibration will affect equip-ments as well．ZDH，ZHS，VHS suspending damp spring vibration absorb-ers are designed to meet the need of users and suspending engineering equipment．they have large damp ratio and low intrinsic vibration frequency,easy to install．They are effective in reducing noises of solid transaudient，are applicable for different types of large and small suspending equipment and pipelines． |
 |

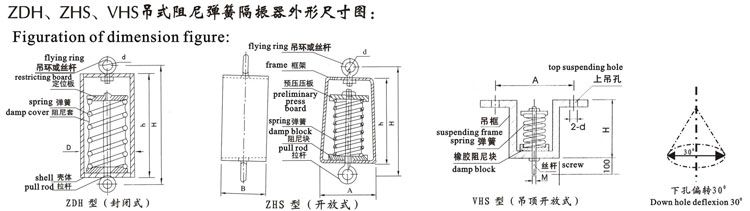

ZDH型技术特性表：Technological characteristic table：
| 型号 Type |
ZDH-30 |
ZDH-50 |
ZDH-80 |
ZDH-140 |
ZDH-240 |
ZDH-420 |
ZDH-700 |
ZDH-1000 |
ZDH-1600 |
ZDH-2400 |
ZDH-3600 |
承载范围（kg）
load scope |
10-30 |
25-50 |
40-80 |
70-140 |
120-240 |
210-420 |
350-700 |
500-1000 |
800-1600 |
1200-2400 |
1800-2400 |
自振频率（HZ）
intrinsic vibration frequency |
4.8-2.8 |
4.5-3.2 |
4.9-3.5 |
4.9-3.5 |
4.7-3.3 |
4.5-3.2 |
4.1-2.9 |
5.5-3.6 |
4.6-3.3 |
4.3-3.1 |
4.3-3.2 |
变形范围（mm）
distortion scope |
11-32 |
12-25 |
10-20 |
10-20 |
11-23 |
12-24 |
15-30 |
10-20 |
12-23 |
13-26 |
13-25 |
D(直径)
diameter |
60 |
65 |
70 |
80 |
105 |
120 |
120 |
120 |
120 |
120 |
120 |
d(孔径)（mm）
hole diameter |
20 |
20 |
50 |
20 |
26 |
26 |
32 |
32 |
32 |
32 |
32 |
H(高度)（mm）
height |
140 |
160 |
175 |
190 |
230 |
260 |
280 |
280 |
280 |
280 |
280 |
h(管高)（mm）
pipe height |
100 |
120 |
135 |
150 |
170 |
200 |
210 |
210 |
210 |
210 |
210 | ZHS型技术特性表：Technological characteristictable：
| 型号 Type |
ZHS-1 |
ZHS-2 |
ZHS-3 |
ZHS-4 |
ZHS-5 |
ZHS-6 |
ZHS-7 |
ZHS-8 |
ZHS-9 |
ZHS-10 |
ZHS-11 |
ZHS-12 |
承载范围（kg）
load scope |
8.6-17 |
14-28 |
20-40 |
26-53 |
39-78 |
53-106 |
73-145 |
106-213 |
140-280 |
184-370 |
300-690 |
500-1500 |
自振频率（HZ）
intrinsic vibration frequency |
4.8-2.8 |
4.2-3 |
3.8-2.7 |
3.5-2.6 |
3.6-2.5 |
3.5-2.7 |
3.9-2.6 |
3.3-2.3 |
3.6-2.3 |
3.6-2.3 |
4-2.6 |
4-2.3 |
变形范围（mm）
distortion scope |
11-22 |
14-28 |
17-34 |
21-37 |
19-38 |
21-33 |
16-33 |
23-46 |
23-46 |
23-46 |
20-40 |
20-45 |
A(宽度)
width |
65 |
65 |
105 |
105 |
105 |
115 |
115 |
115 |
115 |
115 |
115 |
115 |
B(厚度)（mm）
thickness |
65 |
65 |
80 |
80 |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
d(孔径)（mm）
hole diameter |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
H(高度)（mm）
height |
170 |
170 |
200 |
200 |
200 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
h(管高)（mm）
pipe height |
115 |
115 |
145 |
145 |
145 |
195 |
195 |
195 |
195 |
195 |
195 |
195 |
丝杆直径
screw diameter |
M8 |
M8 |
M10 |
M10 |
M10 |
M12 |
M12 |
M14 |
M14 |
M16 |
M16 |
M20 | VHS型技术特性表：Technological characteristictable：
| 型号 Type |
VHS-10 |
VHS-20 |
VHS-30 |
VHS-45 |
VHS-85 |
VHS-120 |
VHS-180 |
VHS-280 |
VHS-420 |
VHS-700 |
VHS-1000 |
VHS-1500 |
承载范围（kg）
load scope |
5-15 |
13-30 |
20-40 |
26-60 |
53-106 |
73-167 |
140-220 |
200-360 |
300-540 |
500-900 |
700-1300 |
1000-2000 |
自振频率（HZ）
intrinsic vibration frequency |
4.8-3.3 |
4.2-3 |
3.8-2.7 |
3.5-2.6 |
3.5-2.7 |
3.9-2.6 |
3.9-2.5 |
3.8-2.6 |
3.9-2.8 |
3.8-2.5 |
3.8-2.6 |
3.8-2.5 |
变形范围（mm）
distortion scope |
11-22 |
13-29 |
17-34 |
21-37 |
21-33 |
16-33 |
16-34 |
17-33 |
16-34 |
17-34 |
17-33 |
17-34 |
| A(mm) |
100 |
100 |
120 |
140 |
150 |
150 |
150 |
150 |
160 |
160 |
160 |
160 |
| H（mm） |
95 |
95 |
120 |
140 |
150 |
150 |
150 |
150 |
160 |
160 |
160 |
160 |
| M（mm） |
8 |
8 |
10 |
10 |
12 |
12 |
14 |
14 |
16 |
18 |
22 |
24 |
| d（mm） |
8.5 |
8.5 |
10.5 |
10.5 |
12.5 |
12.5 |
14.5 |
14.5 |
18 |
20 |
20 |
20 |
注：本厂还定制生产挠度(变形量)1时、2时、3时、4时、5时，即25ram、5 Omm、75ram、lOOmm、125mm及以上产品。
Note：We also custom products，the deflection(deformation)of which is 1,2,3,4,5 inches，nanlely 25，50，75，100，125 mm or above． |
|
| |
|
