ZTD、ZTI型阻尼弹簧大载荷隔振器

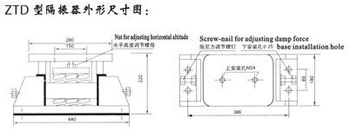

ZTD型阻尼弹簧大载荷隔振器

ZTD high load damp spring vibration absorber

Page4

ZTD型阻尼弹簧大载荷隔振器，全系列共有十二种规格，单只隔振器的垂向载荷自1～16吨可任意选择，各种载荷下对应的自振频率均在4.8Hz以下，可基本满足大中型设备的消极隔振和积极隔振，也可用作隔声房等单体房隔振。产品采用侧向阻尼限位，提高刚度和阻尼保证房屋、设备正常使用。

There are 12 specifications in this series．Vertical load of each vibration absorber can be chosen from 1 to 16 tons，intrinsic Vibration frequency is less than 4.8HZ under difierent load．These products Can be applied to positively Vibr~ion absorption and passively vibration absorption for large and medium sized equipment，they also are useful to insulate Vibr~ion for separated cell like isolation booth．They can ensurethe natural run o buildings and equipments by side damp restriction to improve rigidity and damp．

ZTD型阻尼弹簧大载荷隔振器技术参数表：

Technological parameter table of ZTD high load damp spring vibration absorber：

ZTI型阻尼弹簧大荷载隔振器

ZTI high load damp spring vibration absorber

ZTI型阻尼弹簧大荷载隔振器采用金属弹簧与阻尼器并列使用，阻尼比为0.10～0.25，全系列共有五种规格，单只垂向荷载自2500~62000牛顿，可任意选择，对应各频率在3.1～5Hz以下，可满足大中型设备的消极和积极隔振。

This product is composed of metal spring mad damper，damp ratio is 0.10～0.25．There're 5 specification in this series．Vertical load of each vibration absorber can be chosen from 2500N～62000N．intrinsic vibration frequency is less than 3．1～5HZ。This product can be applied to positively and passively vibration absorption for large and medium sized equit)ment.
