KT型空气弹簧隔振器

KT air spring vibration absorber

Page22

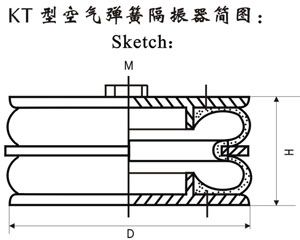

YKT型空气弹簧隔振器采用橡胶双曲气囊，两端法兰板密封，中间镶有金属轮毂，借以承受内压张力。具有刚度低、阻尼适中，隔声效果好，承载2000N-60000N，频率0.5-2.1Hz。广泛应用于汽车、铁道车辆以及舰船、航空、工业等领域的动力机械、机器人、电子设备、仪器仪表、化工机械等设备。

Hyperbolic air cell is adopted in this type．KT air spring vibration absorber is sealed by flange at both ends．Metal hub inlayed in the middle of the vibration absorber is used to bear inner pressure．Load is 2000N-60000N．frequency is O.5～2.1Hz with low rigidity,moderate damp ration and good vibration absorbing abili-ty．It is widely used for automobile，railway vehicle and power engine in ship，aviation and industry fields，robot，electronic equipment，instrument and apparatus，chemical mechanism.

KT型空气弹簧隔振器性能表

Technological performance tab

型号 Type	荷载范围（N） load scope	固有频率 Hz intrinsic frequency	变形范围(mm) distortion scope	H	￠	M
KT-1	5000-15000	0.5-1.8	50-80	180	250	RC1/2
KT-2	10000-30000	1.2-2.1	30-60	180	250	RC1/2
KT-3	15000-45000	0.65-1.9	40-75	220	300	RC3/4
KT-4	20000-60000	1.3-2.1	25-50	220	300	RC3/4
