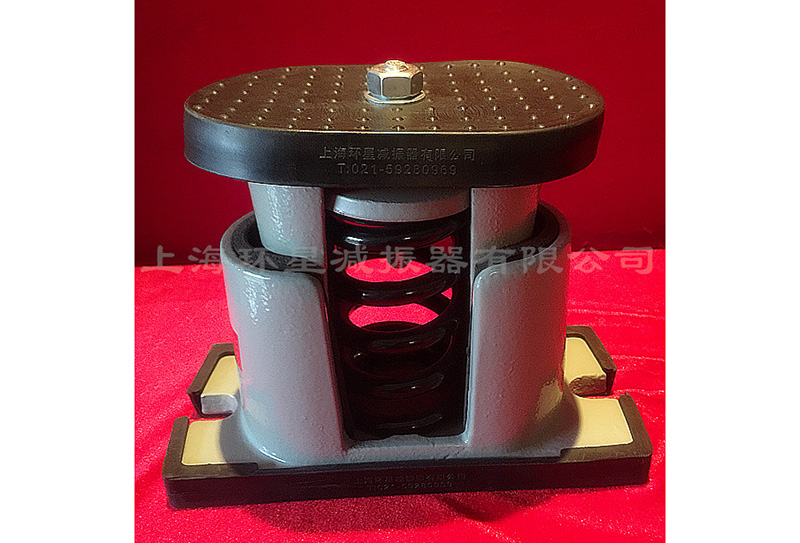

ZTE型阻尼弹簧隔振器结构简单,安装方便,有上下固定安装螺丝或螺孔,调节上下固定安装螺丝上的水平高度调节螺母,可调整隔振器的安装高度来调平因设备的重心偏差导致的受压变形不一致。另外采用了侧向阻尼块,加大了垂向的阻尼系数,而且提高了纵向及横向刚度,保证了设备正常安全运转,不需要另加限位器。该系列产品还可以根据用户需要定制成大变形(100mm以上),低频率(1.5 HZ以下)隔振产品,以满足不同的隔振要求,弹簧分为一组、二组和四组。
ZTE damp spring vibration absorber has simple stmctllre.and it is easy to install with fixed install screw or screw hole on the top and base.adjusting nut to adjust horizontal altitude of fixed install screw.Inconsistent distort caused by barycenter deviation of equipment can be eliminated by adjusting installment altitude.This series adapt side damp block to elevating the vertical damp coefficient.So the longitudinal rigidity andtr ansverse rigidity are upgraded,So the equip merit Can run smoothly without additional restrictor.This series products can be CUstom—built to wide distortion(1arge than 100mm).10w frequency (1ess thanl.5H) in Order to satisfy the different requires of isolating vibration.They can be divided into one group ofsprings, two group of springs,four group of springs.

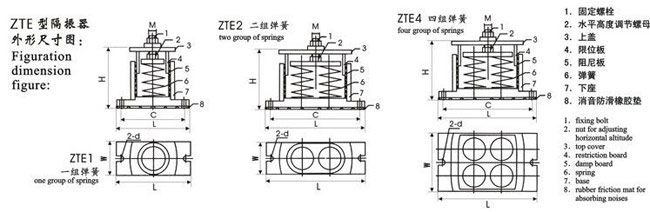

ZTE型技术特性表:
Technological characteristic table:
型号 Type | 荷载范围 N scope of load | 变形范围 mm Distortion | 频率范围(Hz) frequency scope(Hz) | 垂直刚度N/mm vertical rigidity N/mm | 尺寸(mm) Simension | |||||
L | W | C | H | d | M | |||||
ZTE1-10 | 25-100 | 6-25 | 3.2-6.4 | 4 | 152 | 72 | 130 | 135 | 11 | 10 |
ZTE1-20 | 50-200 | 6-22 | 3.4-6.4 | 9 | 152 | 72 | 130 | 135 | 11 | 10 |
ZTE1-40 | 100-400 | 7-29 | 2.9-6.0 | 14 | 152 | 72 | 130 | 135 | 11 | 10 |
ZTE1-80 | 200-800 | 9-36 | 2.6-5.3 | 22 | 152 | 72 | 130 | 135 | 11 | 10 |
ZTE1-150 | 400-1500 | 13-50 | 2.2-4.4 | 32 | 152 | 72 | 130 | 135 | 11 | 10 |
ZTE1-250 | 700-2500 | 11-40 | 2.5-4.8 | 68 | 152 | 72 | 130 | 135 | 11 | 10 |
ZTE1-350 | 900-3500 | 9-38 | 2.6-5.3 | 85 | 215 | 90 | 190 | 175 | 13 | 12 |
ZTE1-500 | 1250-5000 | 8-30 | 2.9-5.6 | 165 | 215 | 90 | 190 | 175 | 13 | 12 |
ZTE1-800 | 1900-8000 | 9-38 | 2.6-5.3 | 213 | 215 | 90 | 190 | 175 | 13 | 14 |
ZTE1-1100 | 3000-11000 | 8-29 | 2.9-6.0 | 400 | 215 | 90 | 190 | 175 | 13 | 14 |
ZTE1-1400 | 3500-14000 | 8-30 | 2.9-5.6 | 462 | 215 | 90 | 190 | 175 | 13 | 14 |
ZTE1-2000 | 5000-20000 | 10-40 | 2.5-4.4 | 500 | 215 | 90 | 190 | 175 | 13 | 16 |
ZTE1-2800 | 7000-28000 | 7-27 | 3.0-6.0 | 1036 | 215 | 90 | 190 | 175 | 13 | 16 |
ZTE2-80 | 200-800 | 7-29 | 2.9-6.0 | 28 | 300 | 90 | 270 | 180 | 16 | 10 |
ZTE2-160 | 400-1600 | 9-36 | 2.9-5.3 | 44 | 300 | 90 | 270 | 180 | 16 | 10 |
ZTE2-320 | 800-3200 | 13-50 | 2.2-4.4 | 64 | 300 | 90 | 270 | 180 | 16 | 12 |
ZTE2-640 | 1600-6400 | 9-37 | 2.6-5.3 | 170 | 300 | 90 | 270 | 180 | 16 | 14 |
ZTE2-1280 | 3200-12800 | 8-30 | 2.9-5.6 | 426 | 300 | 90 | 270 | 180 | 16 | 14 |
ZTE2-2560 | 6400-25600 | 7-27 | 3.0-6.0 | 924 | 300 | 90 | 270 | 180 | 16 | 16 |
ZTE2-5600 | 14000-56000 | 7-27 | 3.0-6.0 | 2072 | 300 | 90 | 270 | 180 | 16 | 18 |
ZTE4-640 | 1600-6400 | 13-50 | 2.2-4.4 | 128 | 300 | 180 | 270 | 180 | 18 | 14 |
ZTE4-1280 | 3200-12800 | 9-37 | 2.6-5.3 | 340 | 300 | 180 | 270 | 180 | 18 | 14 |
ZTE4-2560 | 6400-25600 | 8-30 | 2.9-5.6 | 852 | 300 | 180 | 270 | 180 | 18 | 16 |
ZTE4-5600 | 14000-56000 | 8-30 | 2.9-5.6 | 1848 | 300 | 180 | 270 | 180 | 18 | 18 |
E4-10000 | 25000-100000 | 6-24 | 3.2-6.4 | 4144 | 300 | 180 | 270 | 180 | 18 | 24 |
