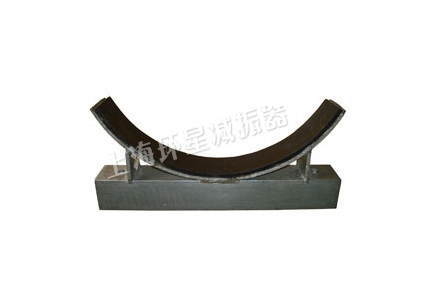

GDT型管道弹性托架是利用橡胶弹性模量较低,能获得低刚度和较低的固有频率的特点设计而成。该系列产品结构简单可靠,安装使用方便,适用于各类架空管道的隔振。如与可曲挠橡胶接头,阻尼弹簧隔振器、吊架隔振器等隔振元件配套使用,对机械设备的隔振降噪和消除管道系统的噪声传递等均有显著效果,进一步铲除了声桥对结构建筑物的影响,是一种不容忽视的隔振措施。
GDT pipeline stretch bracket is designed by taking advantage of rubber’s low flexible module,with low rigidity and low intrinsic frequency.This series of products are convenient to install with simple stru-ctures,are applied to insulate vibration for various aerial pipeline. They possess notable vibration insu-lating and noises reducing effect for mechanical equipment,if used with flexible rubber joint,damp spring vibration absorber and suspending vibration ab-sorber at the same time.It can also eliminate the noise transfer of the pipeline system.Furthermore,it can eradicate the effect of sound bridge to the build-ings,is an ideal vibration absorbing step brooking no ignorance.

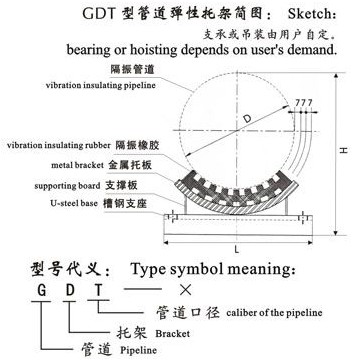

GDT型管道弹性托架技术参数表
Technological parameter table
型号 Type | 荷载范围(N) load scope | 静态变形(mm) static distorion | 固有频率 Hzintrinsic frequency | 使用间距(m) using space | L | H | D |
GDT-32 | 350-1050 | 3-7 | 7-11 | 4 | 100 | 117 | 42.4 |
GDT-40 | 360-1060 | 3-7 | 7-11 | 4 | 100 | 123 | 48.3 |
GDT-50 | 380-1100 | 3-7 | 7-11 | 4 | 140 | 135 | 60.3 |
GDT-65 | 550-1400 | 3-7 | 7-11 | 4 | 140 | 151 | 76.1 |
GDT-80 | 560-1500 | 3-7 | 7-11 | 4 | 200 | 164 | 89 |
GDT-100 | 770-1800 | 3-7 | 7-11 | 5 | 220 | 189 | 114.3 |
GDT-125 | 780-1850 | 3-7 | 7-11 | 5 | 240 | 219 | 139.7 |
GDT-150 | 800-1900 | 3-7 | 7-11 | 5 | 280 | 248 | 168.3 |
GDT-200 | 990-2300 | 3-7 | 7-11 | 5 | 350 | 300 | 219.1 |
GDT-250 | 990-2300 | 4-8 | 6-10 | 5 | 400 | 353 | 273 |
GDT-300 | 1200-2800 | 4-8 | 6-10 | 6 | 450 | 403 | 323.9 |
GDT-350 | 1200-2800 | 4-8 | 6-10 | 6 | 520 | 455 | 375.6 |
GDT-400 | 1500-3600 | 4-8 | 6-10 | 6 | 600 | 506 | 426.4 |
GDT-450 | 1500-3600 | 4-8 | 6-10 | 6 | 650 | 557 | 477 |
GDT-500 | 1900-4600 | 4-8 | 6-10 | 8 | 750 | 608 | 528 |
GDT-600 | 1900-4600 | 5-10 | 5-8 | 8 | 900 | 710 | 630 |
GDT-700 | 2800-7000 | 5-10 | 5-8 | 8 | 1000 | 810 | 731 |
GDT-800 | 2800-7000 | 5-10 | 5-8 | 10 | 1200 | 913 | 833 |
GDT-900 | 4500-10000 | 5-10 | 5-8 | 10 | 1350 | 1015 | 935 |
GDT-1000 | 4500-10000 | 5-10 | 5-8 | 10 | 1500 | 1116 | 1036 |
GDD型管道吊式隔振器以橡胶隔振元件为主要组成部件,对隔离固体噪声传递效果明显,可单独用于各种架空管道的隔振,也可与可曲挠橡胶接头,橡胶隔振垫、管道托架配套用于各类管道系统,以取得更好的隔振效果。产品安装使用方便,抗冲击性能好,动载安全系数大,固有频率6~10HZ,压缩变形6~10m/m,是理想的隔振降噪元件。
Having rubber vibration absorber as mainly parts,this product is effective in reducing noise of solid transaudient.It is applicable not only for vibration isolating of all kinds of aerial pipelines by itself,but also for various of ductwork fitting with flexible rubber joint,rubber isolating mat and pipeline bracket in order to gain better effect.This product has the characteristic of convenient installation and usage,good capability of bearing strong impact,large dynamic safe coefficient.The intrinsic frequency is 6~10HZ.compressed distortion is 6~10m/m.It is a perfect vibration and noise isolating component.

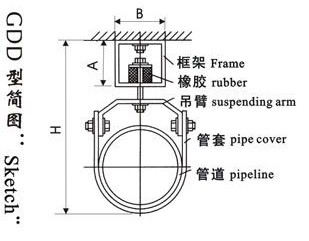

GDD型技术参数表
Technological parameter table
型号 Type | A | B | H | 载荷 NLoad | 安装间距 Mdistance for installation |
GDD-25 | 100 | 50 | 130 | 500 | 2-3 |
GDD-32/40 | 100 | 50 | 130 | 500 | 2-3 |
GDD-50/65 | 100 | 50 | 180 | 900 | 2-3 |
GDD-80 | 100 | 50 | 210 | 1800 | 3-4 |
GDD-100 | 100 | 50 | 230 | 2200 | 3-4 |
GDD-125 | 100 | 80 | 260 | 2200 | 3-4 |
GDD-150 | 100 | 80 | 310 | 3800 | 3-4 |
GDD-200 | 110 | 80 | 350 | 3800 | 5-6 |
GDD-250 | 110 | 80 | 400 | 3800 | 5-6 |
GDD-300 | 120 | 80 | 500 | 4000 | 5-6 |
GDD-350 | 120 | 80 | 540 | 4000 | 5-6 |
GDD-400 | 120 | 80 | 590 | 5500 | 7-8 |
GDD-450 | 120 | 80 | 660 | 5500 | 7-8 |
GDD-500 | 140 | 120 | 700 | 5500 | 7-8 |
GDD-550 | 140 | 120 | 760 | 6500 | 7-8 |
GDD-600 | 140 | 120 | 800 | 6500 | 7-8 |
GDD-650 | 140 | 120 | 900 | 6500 | 8-10 |
GDD-700 | 140 | 120 | 950 | 13000 | 8-10 |
GDD-750 | 140 | 120 | 1000 | 13000 | 8-10 |
GDD-800 | 140 | 120 | 1050 | 14000 | 8-10 |
GDD-900 | 140 | 120 | 1120 | 16000 | 8-10 |
GDD-1000 | 140 | 120 | 1300 | 16000 | 8-10 |
