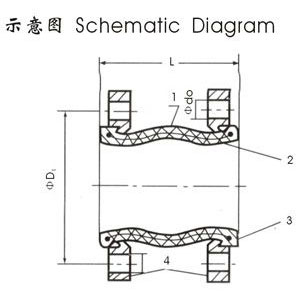

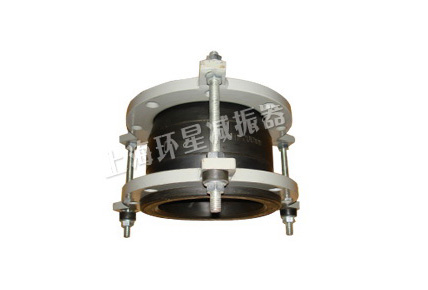

材料表
Table of Materilals
序号 Serial No | 部位 Prtion | 材料 Material |
1 | 主体 Main body | 极性橡胶 Polarized rubber |
2 | 内衬 Lining | 尼龙帘布 Nylon cord fabric |
3 | 骨架 Frame | 硬钢丝 Hard steel wire |
4 | 法兰 Flange | 软钢 Mild steerl |
技术条件
Technical Consition
公称通径 DN mm(寸) Nominal core diameter | 32-300(11/4"-12") | 350-500(14"-20") |
工作压力 MPa(kg.f/cm2) Working pressure | 1.5(15) | 0.8(8) |
爆破压力 MPa(kg.f/cm2) Bursting pressure | 4.5(45) | 2.4(24) |
真空度 Vacuity Kpa(mm Hg) | 86.7(650) | |
适用温度 Applicable temp. | -20℃-80℃(普通型) +80℃-135℃(特殊配方) | |
适用介质 Applicable media | 空气、压缩空气、水、海水、热水、弱酸 Air.Compressed air.Water.Sea Water.Hot Water.Weak acid.Etc | |
接头两端可任意偏转,便于自由调节轴向或横向位移.Both ends of the joint can be arbitray deflected for free adjustment of axial or lateral displacement. |

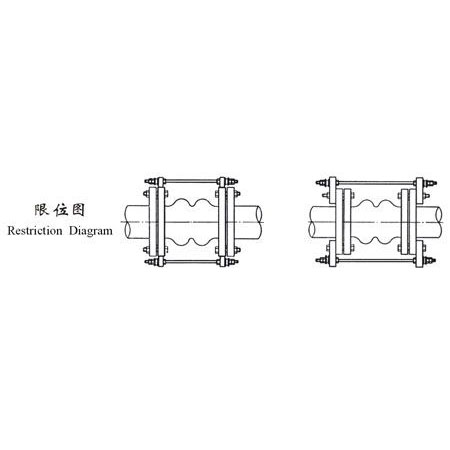

注:普通型产品中能在80℃以下,如需135℃以下需指明,更换橡胶配方。压力较高及冲击力较大时宜采用限位拉杆装置。
Note:ordinary type products can only be used under 80℃. if temperature is higher than 130℃, please show clearly, ingredient of the rubber will be changed. Restricting pull rod is necessary, when pressure is high and impulse is great.
公称通径、长度、位移数值与法兰主要数据表
Table of Main Parameters of Nominal Core Diameter,Length,Displacement Value and Flange
公称能径 Nominal core diameter | 长度 Length l(mm) | 螺栓数 No.of bolt n | 螺栓孔直径 Diameter of bolt hole do(mm) | 螺栓孔中心圆直径 Diameter of bolt hole center circlen D1 (mm) | 轴向位移 Axial displacenment(mm) | 横向位移 Lateral displace- ment (mm) | 偏转角度 Angle of deflection (α1+α2) | |||
(mm) | (寸 in) | 伸长 Strech | 压缩 Compression | |||||||
32 | (11/4) | 150 | 130 | 4 | 15 | 89 | 12 | 20 | 14 | 150 |
40 | (11/2) | 150 | 130 | 4 | 15 | 98.5 | 12 | 20 | 14 | 150 |
50 | (2) | 150 | 130 | 4 | 19 | 121 | 12 | 20 | 14 | 150 |
65 | (21/2) | 150 | 130 | 4 | 19 | 139.5 | 12 | 20 | 14 | 150 |
80 | (3) | 150 | 130 | 4 | 19 | 153 | 12 | 20 | 14 | 150 |
100 | (4) | 150 | 130 | 8 | 19 | 190 | 12 | 20 | 14 | 150 |
125 | (5) | 150 | 130 | 8 | 22.5 | 216 | 12 | 20 | 14 | 150 |
150 | (6) | 150 | 130 | 8 | 22.5 | 242 | 12 | 20 | 14 | 150 |
200 | (8) | 150 | 130 | 8 | 22.5 | 298 | 12 | 20 | 14 | 150 |
250 | (10) | 150 | 130 | 12 | 22.5 | 362 | 16 | 25 | 22 | 150 |
300 | (12) | 150 | 130 | 12 | 22.5 | 432 | 16 | 25 | 22 | 150 |
350 | (14) | 200 | 12 | 28.5 | 476 | 16 | 25 | 22 | 150 | |
400 | (16) | 200 | 16 | 28.5 | 540 | 16 | 25 | 22 | 150 | |
450 | (18) | 200 | 16 | 32 | 578 | 16 | 25 | 22 | 150 | |
500 | (20) | 200 | 20 | 32 | 634 | 16 | 25 | 22 | 150 |
注:其他标准或非标准法兰需另订协议,指明标准或提供图纸及有关数据,本厂可定制生产。法兰配备按需方提供,如JIS、DIN等,表中为ANSL150。
Note:For flanges ofother standards of non-standard, it is necessary to be agreed upon separately. please specify standard of furnish diagram and relative parameter, we will manufacture accordingly, ANSI150 are shown in the table.
