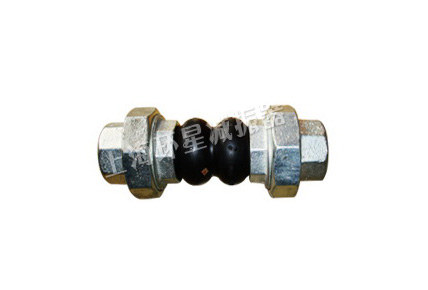

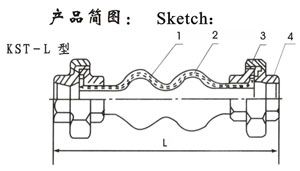

材料表
Table of Materilals
序号 Serial No | 部位 Prtion | 材料 Material |
1 | 主体 Main body | 极性橡胶 polarized rubber |
2 | 内衬 Lining | 尼龙帘布 Nylon cord fabric |
3 | 骨架 Frame | 尼龙帘布 Nylon cord fabric |
4 | 活接头 Flexible joint | 铸钢 Mild steer |
技术条件
Technical Consition
工作压力Mpa(kg.f/cm2) Workngpressnre | 1.0Mpa(10kg.f/cm2) | 偏转角度 deflectangle | (a1+a2)45℃ |
爆破压力MPa(kg.f/cm2) Working pressure | 3.0Mpa(30kg.f/cm2) | 真空度 Vacuum | 53KPa(400mmHg) |
适用温度 Applecable temp.℃ | -20~80℃ | ||
适用介质 Applecable media | 空气、压缩空气、水、海水、热水、弱酸 Air.Compressed air. Water.Sea Water. Hot Water. Weak acid.Etc |
注:+80℃-135℃采用特殊配方。
NOTE:+80℃-135℃ use special formula
注:安装时活接头中套必须压紧,以防软接头滑落
NOTE:Middle pipe of flexible rubber joint must be impacted tightly in order to avoid the joint slidingon installation
公称通径、长度、位移数值与法兰主要数据表
Table of Main Parameters of Nominal Core Diameter,Length,Displacement Value and Flange
公称能径 Nominal core diameter | L值(mm) LValue | 轴向位移 Axialdisplacenment(mm) | 横向位移 Axial displacenment(mm) | |||
(mm) | (寸in) | 伸长 Strech(mm) | 压缩 Compression | |||
KST-15 | 1/2 | 200 | 5-6 | 22 | 22 | |
KST-20 | 3/4 | 180 | 200 | 5-6 | 22 | 22 |
KST-25 | 1 | 180 | 200 | 5-6 | 22 | 22 |
KST-32 | 11/4 | 200 | 200 | 5-6 | 22 | 22 |
KST-40 | 11/2 | 210 | 200 | 5-6 | 22 | 22 |
KST-50 | 2 | 220 | 210 | 5-6 | 22 | 22 |
KST-65 | 21/2 | 245 | 220 | 5-6 | 22 | 22 |
KST-80 | 3 | 220 | 5-6 | 22 | 22 |

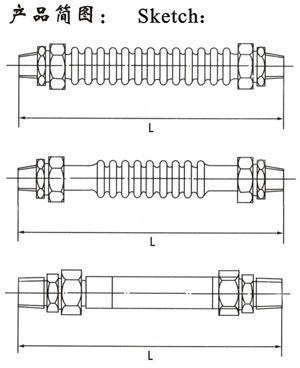

风机盘管连接件有不锈钢波纹管、紫铜波纹管和橡胶高压软管与钢制管路连接件扣压或链接而成。具有耐高压、弹性好、偏转位移量大、耐老化、耐温、安装方便,选择性好。适用于宾馆、饭店、办公楼、实验楼等各种风机盘管的进出口管路柔性连接。
Fan engine coiled pipes joint may be made of stainless steel corrugated pipe,red steel pipe and rubber soft pipe bearing high pressure burked of connected with steel or copper pipe.It has the feature of bearing high pressure,good flexible,large deviated displacement ,anti-aging ,anti-temperature and good selectivity.It is applied to flexible connective inlet and outlet pipe of fan engine coiled pipes in hotel,restarrant, office building and lab building.
技术条件
Technology qualification
工作压力 working pressure | 1.6MPa |
爆破压力 bursting pressure | 4.8MPa |
适用温度 applicable temperature | -20-150℃ |
适用介质 applicable medium | 水、空气等 air water |
技术特性和基本尺寸
Technology characteristic and basic dimension
公称通径 nominal diameter | 总长 L total length | 轴向位移 axial disp lacement | 轴向伸长 axial stretch | 横向位移 lateral displacement | 偏转角度 deflect angle | 材料 Materials |
15 | 250 | 10 | 15 | 25 | 600 | 不锈钢 stainless steel |
20 | 250 | 15 | 25 | 30 | 600 | |
25 | 250 | 20 | 30 | 35 | 600 | |
15 | 250 | 10 | 15 | 20 | 500 | 紫铜 red copper |
20 | 250 | 10 | 15 | 20 | 500 | |
25 | 250 | 10 | 20 | 30 | 500 | |
15 | 250 | 15 | 10 | 30 | 450 | 橡胶管 rubber pipe |
20 | 250 | 15 | 10 | 30 | 450 | |
25 | 250 | 15 | 10 | 30 | 45 |
