XWQ型隔振台座限位器 FS型环形橡胶隔振器

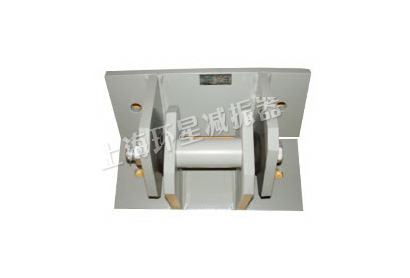

XWQ型隔振台座限位器

XWQ vibration isolation dado restrictor

Page11

XWQ型隔振台座限位器由带铰链机构的钢板与橡胶组成，主要针对高层建筑内水泵开启与关闭时台面振幅较大，容易引起管路错位暴裂而设计的，具有性能稳定，价格便宜等优点，现已广泛使用于需要限位的动力设备中。

XWQ vibration isolation dado restrictor is com－posed of steel plant with hinge and rubber．It is designed for large swing of table board when the water pump is on or off in the high buildings，which will result in the pit)eline disloc-ation．It has stable per for mance and cheap price．It has been widely used in power equipments to which the restrictor is needed．

XWQ型技术特性表

Technological characteristic table

规格 Specification	承载范围（kg） load scope	A	B	C	D	E	F	G	T
XWQ-500 XWQ-1000	0-500 500-1000	80	200	40	2	80	80	65	8
XWQ-2000 XWQ-4500	1000-2000 2000-4500	120	320	65	4	130	130	120	14
XWQ-9800 XWQ-20000	4500-9800 9800-20000	180	400	110	5	220	220	200	26

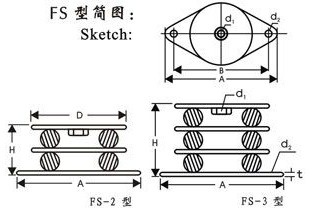

FS型环形橡胶隔振器

FS型环形橡胶隔振器由上下钢板，中间环状橡胶块组成，分二层、三层，自振频率低，性能稳定，适用于水泵、风机、压缩机等动力设备隔振。

FS ringy rubber vibration absorber is composed oftop and bottom steel plate and ringy rubber block in the middle．It has two—layer and three-layer series，has low intrinsic vibr-ation frequency and stable perfor-mance，is effective in vibration absorbing for power equipment，such as water pump，fan engine and compressor．

FXG型技术特性表

Technological characteristic table

规格 Specification	承载范围（kg） load scope	最大变形（mm） distortion scope	自振频率（HZ） intrinsic vibration frequency	D	H	A	B	d1	d2	t
FS-2-60 FS-3-60	30-80 30-80	9 13	7 6	60 60	35 51	105 105	83 83	M8 M8	11 11	2.5 2.5
FS-2-80 FS-3-80	60-150 60-150	11 15	6.3 5.1	80 80	47 65	140 140	110 110	M10 M10	13 13	3 3
FS-2-120 FS-3-120	120-300 120-300	18 27	5 4	120 120	67 98	210 210	165 165	M12 M12	15 15	3 3
FS-2-160 FS-3-160	280-700 280-700	25 39	4.4 3.5	160 160	86 126	280 280	220 220	M16 M16	19 19	4.5 4.5
