TL型推力限位器

TL thrust restrictor

Page11

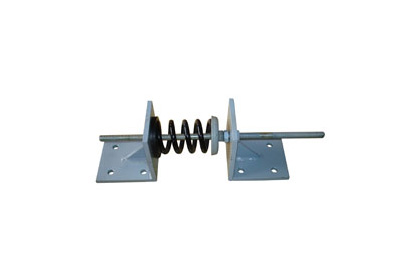

TL型推力限位器是由一弹簧组件与橡胶隔振消声垫串联组成，它可在厂内预校准其推力以及在工地上作进一步调校，令其在开始工作和停止工作之间有一定的移动距离，一般控制在最大8mm的位移量，可在水平和垂直方向作限位使用。

TL thrust restrictor is composes of a set of spring assembly and rubber vibr-ation and noise isolation mat．Thrust of the product can be preliminary adjusted in the factory and further adjusted on build-ing site．It should keep a certain moving distance between starting and ending work． Under normal condition，the maximum moving distance should be less than 8mm by horizontal and vertical restricted using．

TL型技术特性表

Technological characteristic table

规格 Specification	最大推力N maximum thrust	变形（mm） Distortion	刚度N/mm Rigidity	H	W1	W2	L1	L2	L3	M	d
TL-30	300	25	12	130	110	70	130	30	70	M12	ø13
TL-70	700	25	27	130	110	70	130	30	70	M12	ø13
TL-150	1500	25	59	130	110	70	130	30	70	M12	ø13
TL-300	3000	25	118	130	110	70	130	30	70	M16	ø13
TL-500	5000	25	196	130	110	70	130	30	70	M16	ø13
TL-750	7500	25	294	130	110	70	130	30	70	M18	ø13
TL-1000	10000	25	392	130	110	70	130	30	70	M18	ø16
TL-1300	13000	25	540	130	110	70	130	30	70	M20	ø16
TL-1800	18000	25	720	130	110	70	130	30	70	M20	ø16
