CG冲床专用橡胶隔振器 ZTZ型阻尼弹簧隔振器

CG冲床专用橡胶隔振器与ZTZ型阻尼弹簧隔振器

CG punch press special-purpose rubber vibration isolator and ZTZ damper spring vibration isolator

Page24

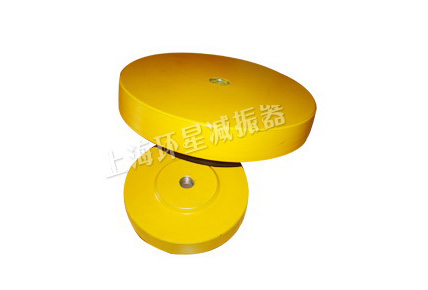

CG 型冲床专用橡胶隔振器是由底部橡胶隔振器和金属圆盘粘合而成，可以另配升降螺栓调节高度，结构简单，安装实用方便，适用于各类冲床隔振。

The CG punch press special-purpose rubber vibration isolator is becomes by the base rubber vibration isolator and the metal disc agglutination, may match the fluctuation bolt adjustment altitude in addition, the structure is simple, installment practical convenient, is suitable in each kind of punch press vibration isolation.

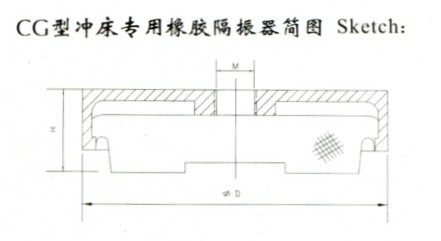

CG型产品技术特性表

Technological performance table:

型号 Model	荷载范围（N） Load range (N)	变形范围mm Deformation range(mm)	ΦD	H	M
CG-500	2500～7500	3～5	131	48	16
CG-1000	5000～15000	3～5	131	48	16
CG-2000	10000～30000	3～5	233	60	24
CG-4000	20000～60000	3～5	233	60	24

ZTZ型阻尼弹簧组合隔振器

ZTZ型阻尼弹簧组合隔振器是由阻尼器、组合弹簧、上下钢板和橡胶防滑垫组成，阻尼器由运动部件和固定部件组成，固定件中装有高效粘滞性阻尼剂，在工作时产生阻尼力，通过改变阻尼器的几何解雇和阻尼剂的配方可使阻尼比在0.05-0.30范围内调节，从而有效限制设备起动和停机时振幅，对设备运行稳定性和隔离固体声的传递起作用。可广泛应用于大中型压力机、锻锤、空压机、大型风机、泵类和柴油机等设备的隔振，也可用于精密仪器、设备的消极隔振。

ZTZ damper spring vibration isolator is a combination of dampers, combination of springs, upper and lower steel plates and rubber anti-skid plates, Dampers are composed of moving part and a fixed part, Fixtures with high viscosity in the damping agent, the damping force at work, by changing the geometry and damper damping agent of formula damping ratio in the0.05-0.30 range can be adjusted so as to effectively start and stop limit device when the amplitude stability of equipment operation and isolation of the sound transmission of solid work. Can be widely used in large and medium-sized presses, hammers, air compressor Large fans, pumps and diesel engines and other equipment of isolation can also be used for precision instruments, equipment, passive vibration isolation.

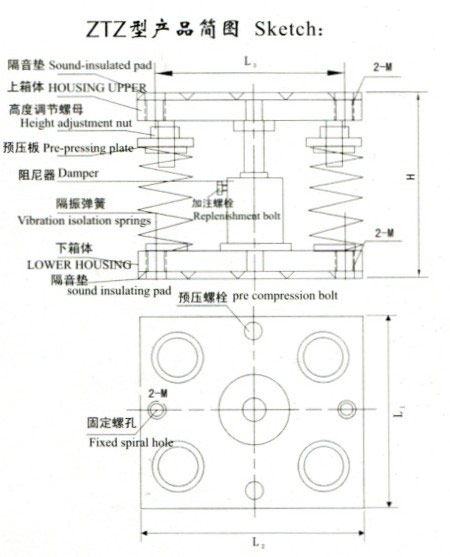

ZTZ型产品技术特性表 Technological performance table:

型号 Model	荷载范围（N） Load range (N)	最佳载荷（N） Best load(n)	固有频率 Natural frequency (HZ）	最佳点竖向刚度N/mm Vertical stiffness of the best points	L1	L2	L3	H	M
ZTZ-400	2000～6000	4000	3.4	185	280	280	240	160	12
ZTZ-600	3000～9000	6000	3.3	260	280	280	240	160	12
ZTZ-800	4000～12000	8000	3.3	348	280	280	240	160	12
ZTZ-1200	6000～18000	12000	3.3	522	280	280	240	160	12
ZTZ-2000	10000～30000	20000	3.3	869	300	300	260	180	14
ZTZ-3000	15000～45000	30000	3.2	1229	300	300	260	180	14
ZTZ-4000	20000～60000	40000	3.2	1639	300	300	260	180	18
ZTZ-6000	30000～90000	60000	3.2	2459	380	380	340	200	20
ZTZ-8000	40000～120000	80000	3.2	3279	400	400	360	200	24
ZTZ-10000	50000～150000	100000	3.2	4098	400	400	360	200	24
